Collar Beam Connection with Cleat TB-HKK
Collar Beam Connection with Cleat
TB-HKK

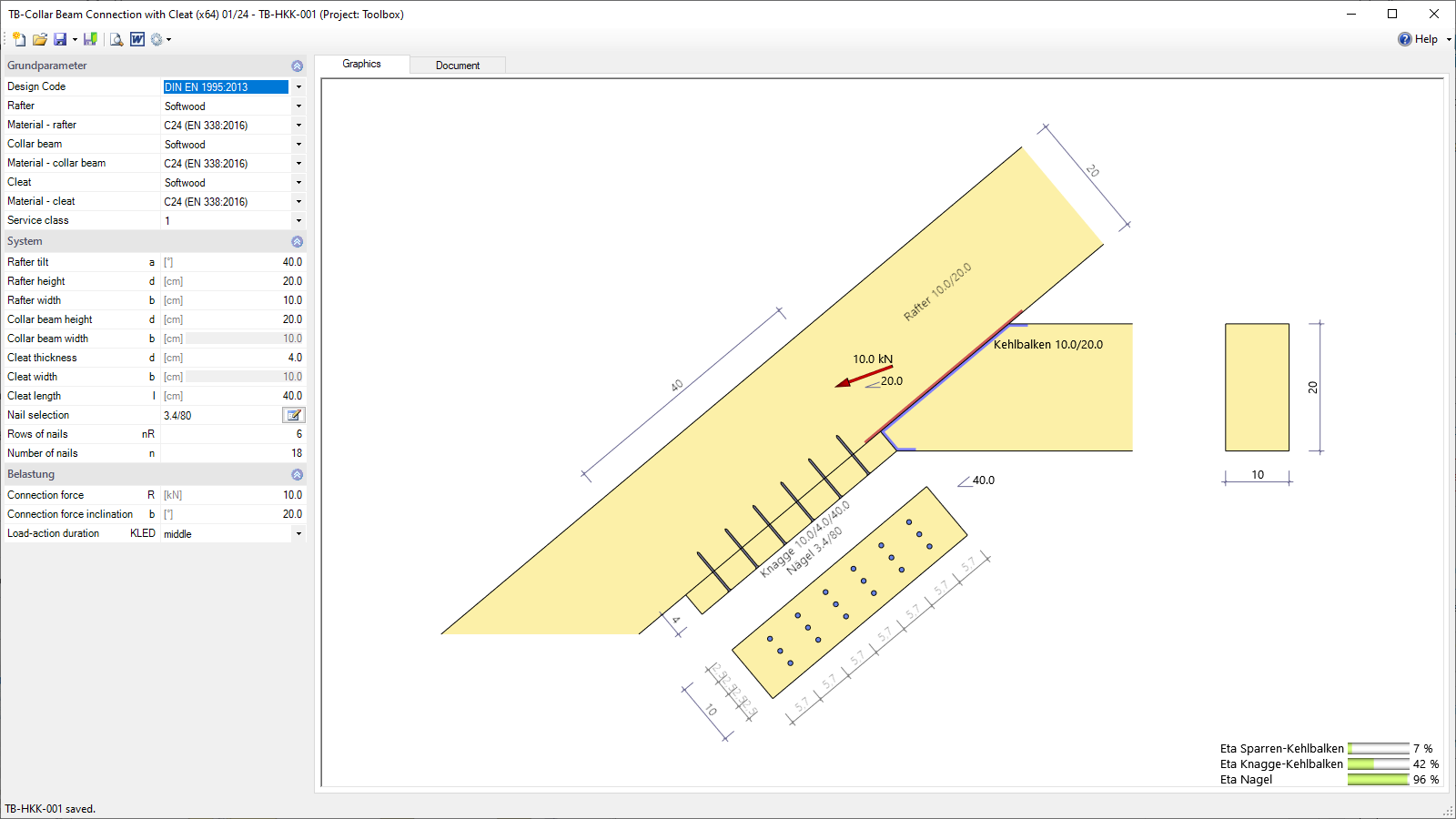

This toolbox module can be used to provide proof of a one-part collar beam connection with a cleat. The force is transmitted via contact pressure in the pressure surfaces between the collar beam and rafter or collar beam and cleat. The resulting connecting force is broken down into both components orthogonally to the pressure surfaces. The pressure proofs of both contact members are carried out.
Discover now more programs from the section Toolboxes Timber!
SHOW MORECalculations
- Verification in the rafter-collar beam compression area
- Verification in the pressure area collar beam – cleat
Required number of nails:
The program calculates the statically required number of nails for a given nail diameter. The geometric arrangement and any reductions are NOT taken into account!
