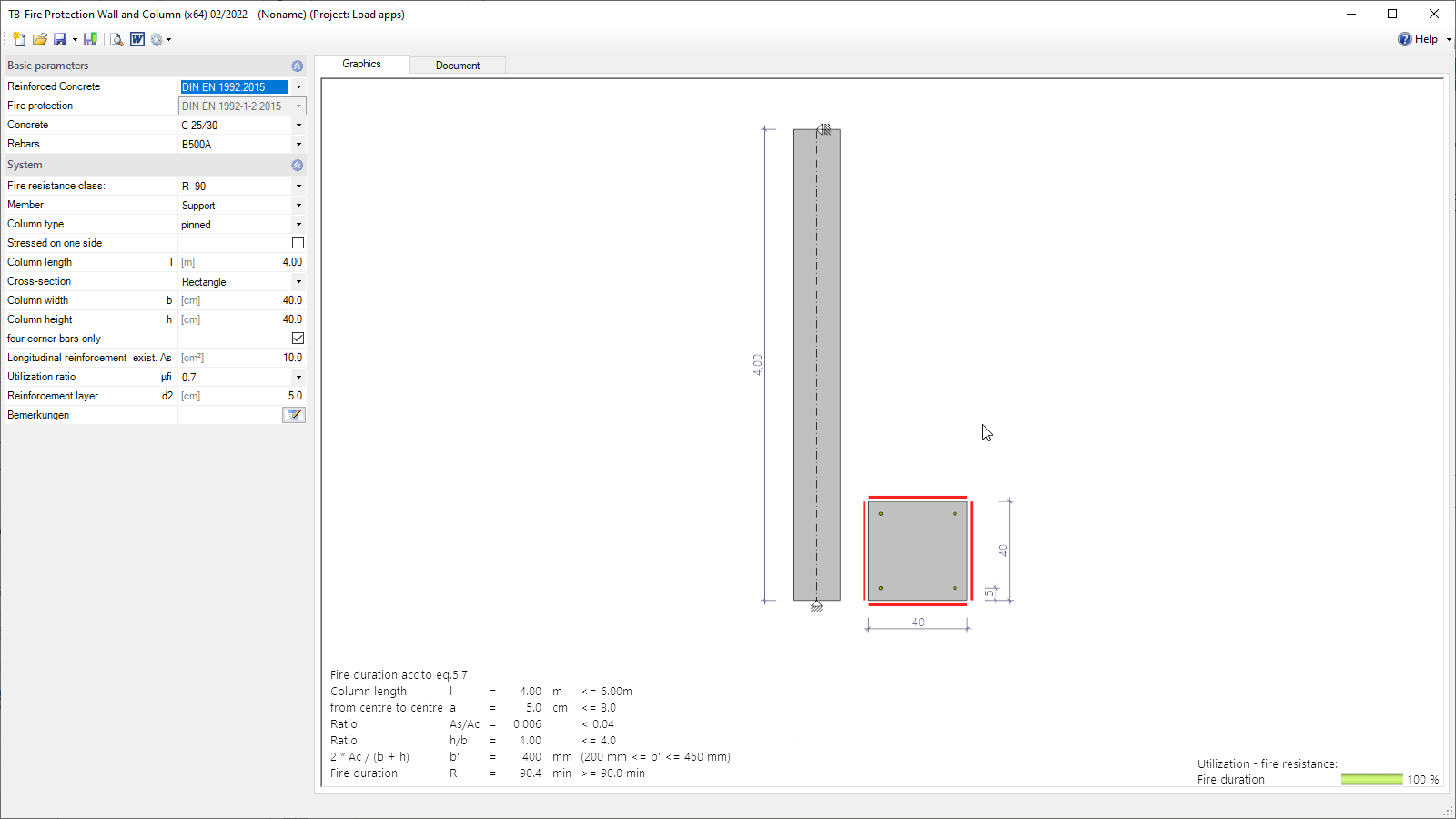

TB-BXW user interface
Fire Protection Wall and Column
TB-BXW
The TB-BXW module can be used to determine the fire duration for reinforced concrete walls with flames on one and both sides as well as reinforced concrete columns with flames on some and all sides at minimum dimensions.
Discover now more programs from the section Toolboxes Fire Protection!
SHOW MOREThis module can be used to determine the minimum dimensions for fire protection verifications for reinforced concrete walls with flames on one and both sides and partially flamed reinforced concrete columns as well as the fire duration of reinforced concrete columns with flames on all sides.
Calculations
- Supports, flamed on all sides: fire duration according to method A
- Columns, flamed on one side: required column dimensions and axial spacing of reinforcement
- Load-bearing walls: required wall thicknesses and centre distances of the reinforcement
- Non-load-bearing walls: required wall thicknesses
Document file formats
- Word
- Printer
Output
Standard output
Standards
- DIN EN 1992
- ÖNORM EN 1992
