Home / Products / Toolboxes / Indirect Support

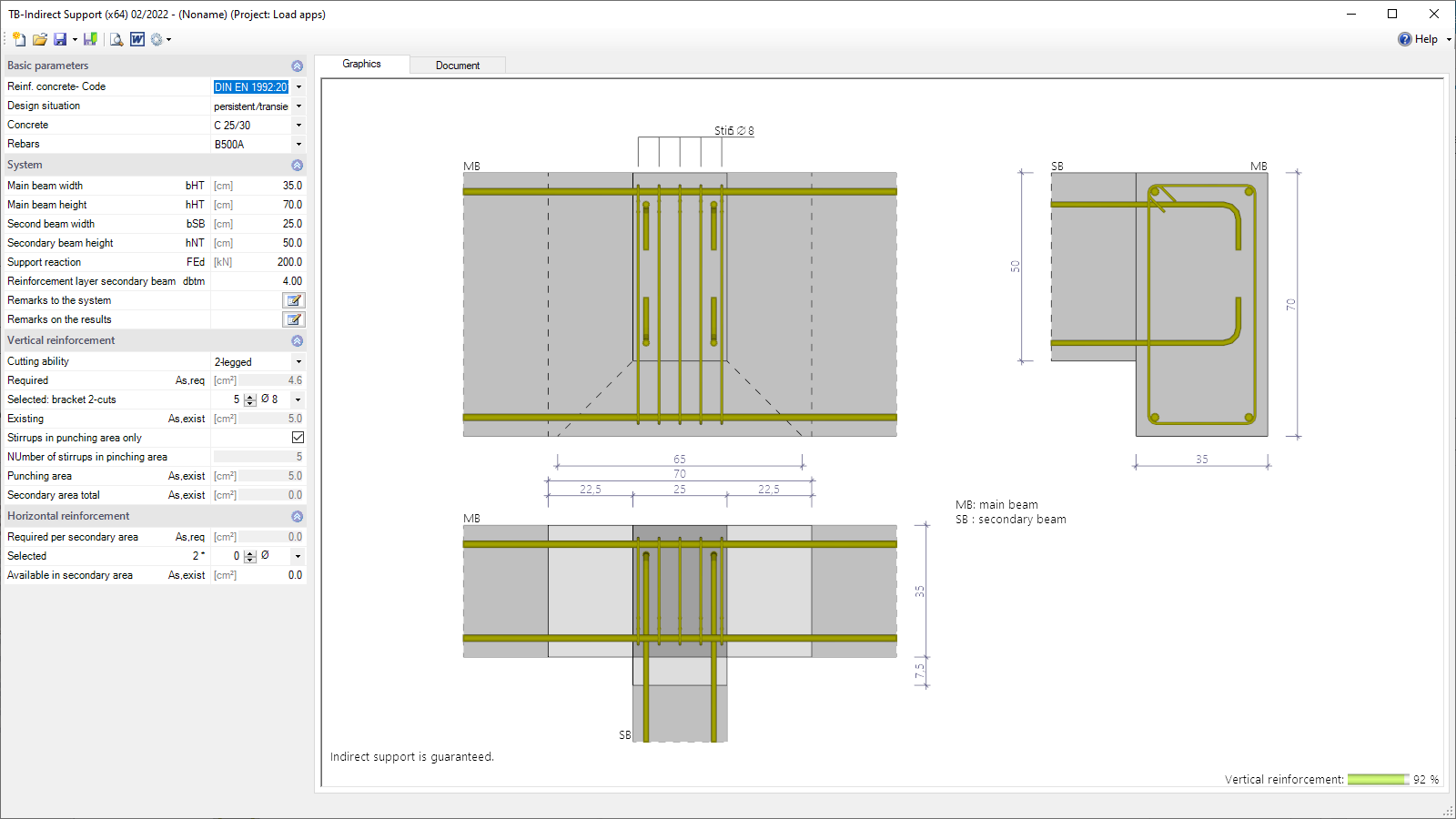

  • TB-BIA user interface
    TB-BIA user interface

Indirect Support

TB-BIA

The TB-BIA module can be used to verify the indirect support of a beam.

to the shop
Design Output options Standards

Discover now more programs from the section Toolboxes Reinforced Concrete!

SHOW MORE
Calculations
  • necessary suspension reinforcement in the crossing area
  • if applicable horizontal reinforcement
  • dimension crossing area
Design bases

The basis for the calculation is DIN EN 1992-1-1 / NA:2013-04 or ÖNORM B 1992-1-1 edition:2011-12-01.

Loads

The load is entered as a design value.

Documents
  • PDF
  • Word
  • Printer
Output

Standard output

Standards
  • DIN EN 1992
  • ÖNORM EN 1992
