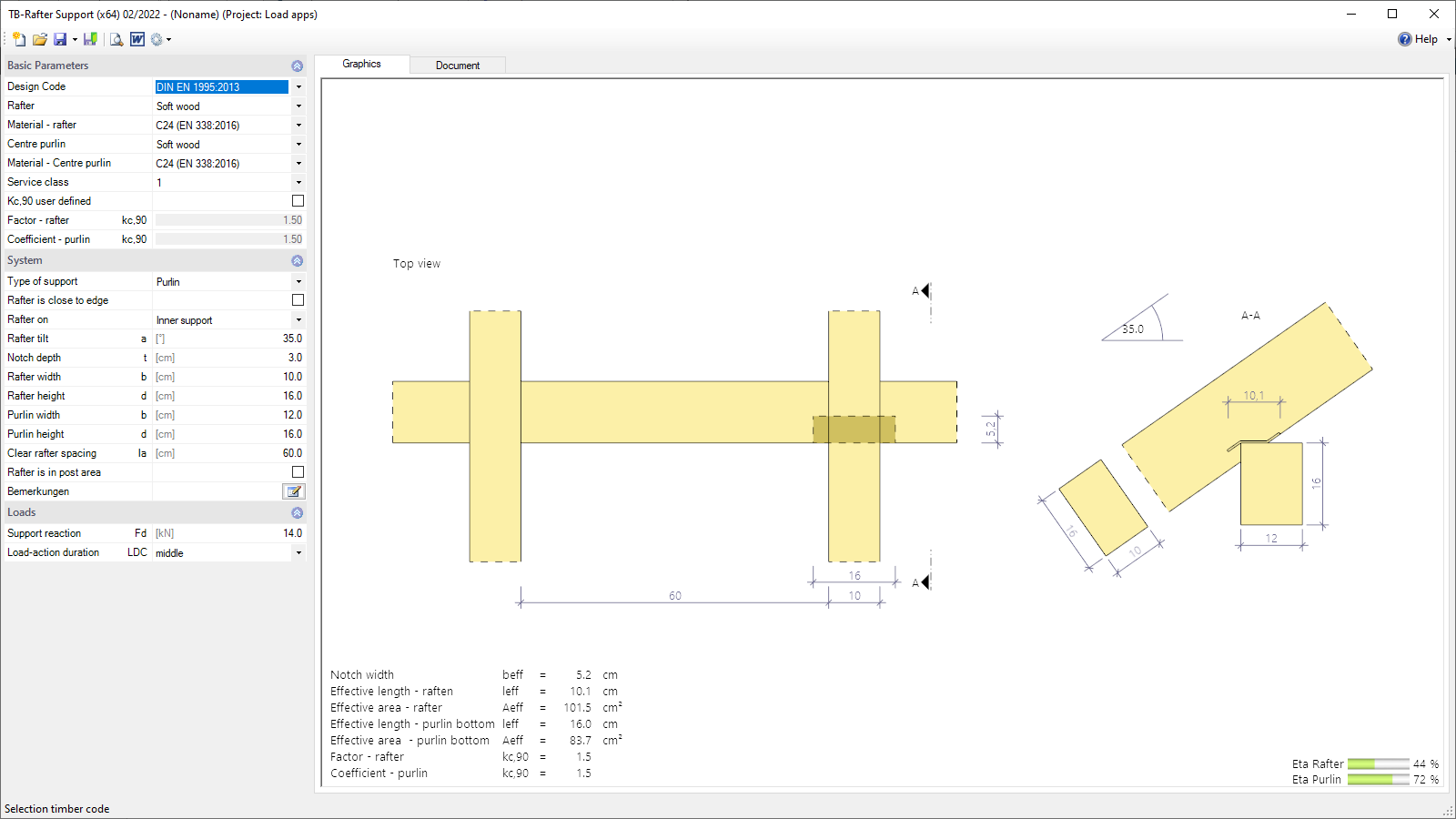

  • TB-HSA user interface
    TB-HSA user interface

Rafter Support

TB-HSA

The TB-HSA module can be used to check the bearing pressure of a rafter depending on the load positions, the geometry and the material.

to the shop
Design Output options Standards

Discover now more programs from the section Toolboxes Timber!

SHOW MORE
Calculations
  • Calculation of kc90
  • Calculation of kmod and transverse compressive strength fc,90,d parallel to the fibre fc,0,d
  • Calculation of the respective resulting bearing areas Aeff for rafters and purlins or sills
  • Stress verification for the compression σd for rafters and purlins or sills
  • The verification of the compression is carried out on the rafter side taking into account lef
