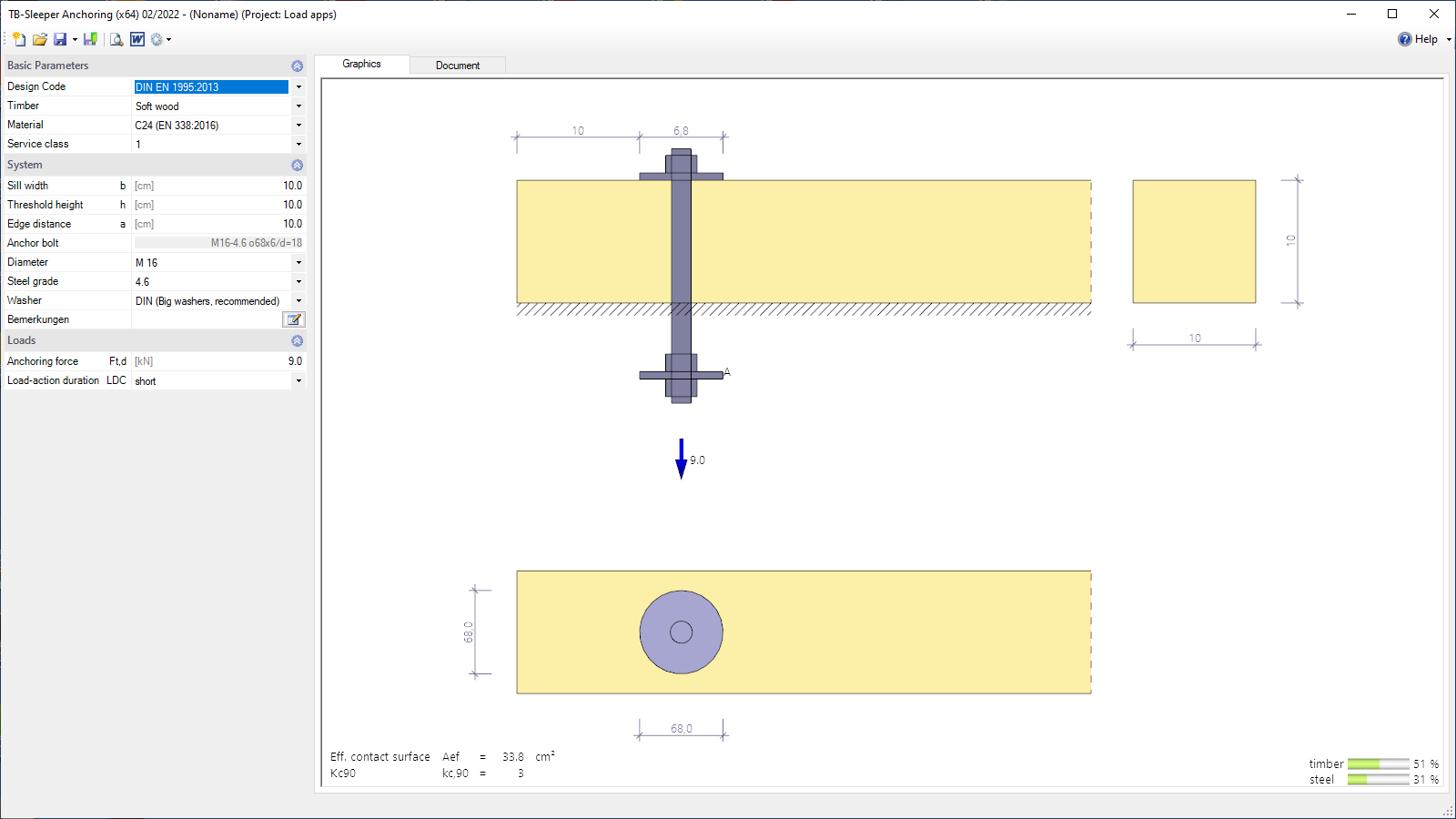

TB-HUS user interface
Sleeper Anchoring
TB-HUS
With the TB-HUS module, a sleeper anchor with washer can be verified according to EN 1995.
Discover now more programs from the section Toolboxes Timber!
SHOW MOREAnchor bolts
Round steel with cut thread (structural steel S 235, S 275, S 355) and screws (grade 4.6, 4.8, 5.6 etc.) are calculated according to the rules for fasteners in timber construction.
Washers
Large washers are calculated according to DIN 1052, small washers according to EN 1995. The pressure under the washer is verified. According to EN 1995 8.5.2, the following maximum may be applied to steel sheets: dwasher <=12 twasher
Documents
- Word
- Printer
Output
- The utilisations for steel and wood are indicated separately.
- The programm outputs an “equivalent” rectangular washer as an alternative to the selected washer.
Standards
- DIN EN 1995
- ÖNORM EN 1995
