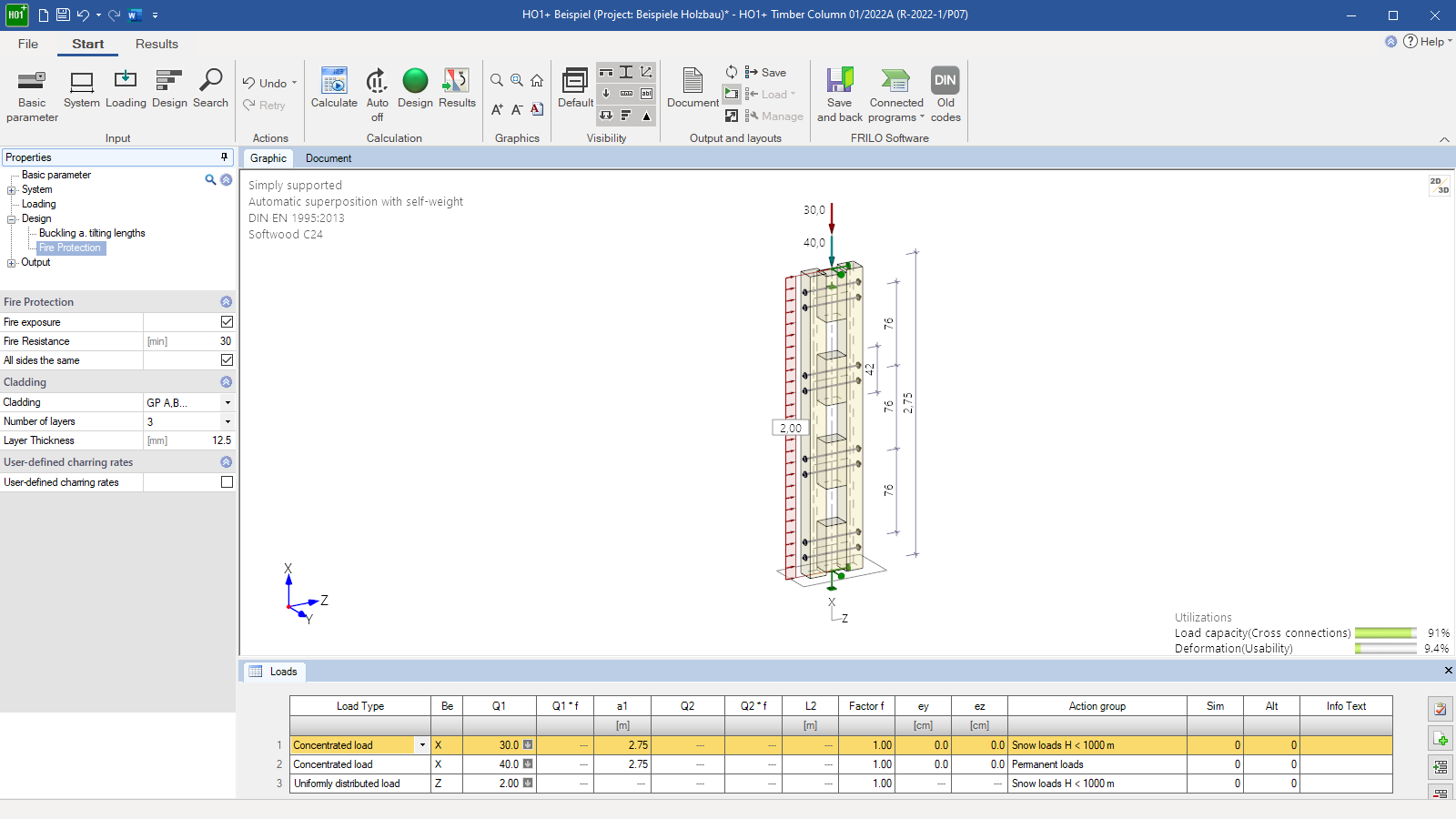

HO1+ user interface with a multi-part hinged column with wood spacers -

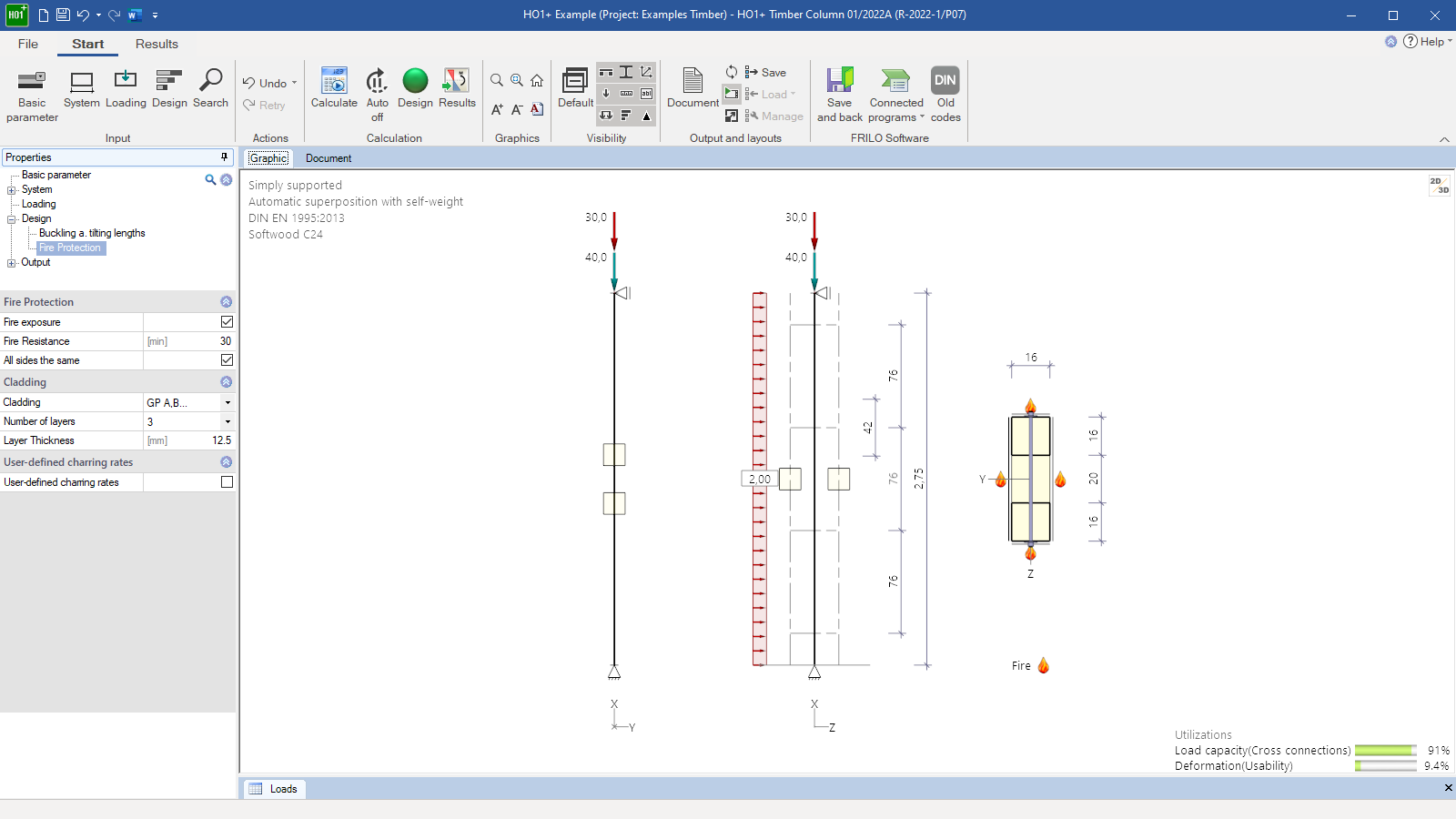

Data entry for the fire-safety design of a hinged column with user-defined charring rates -

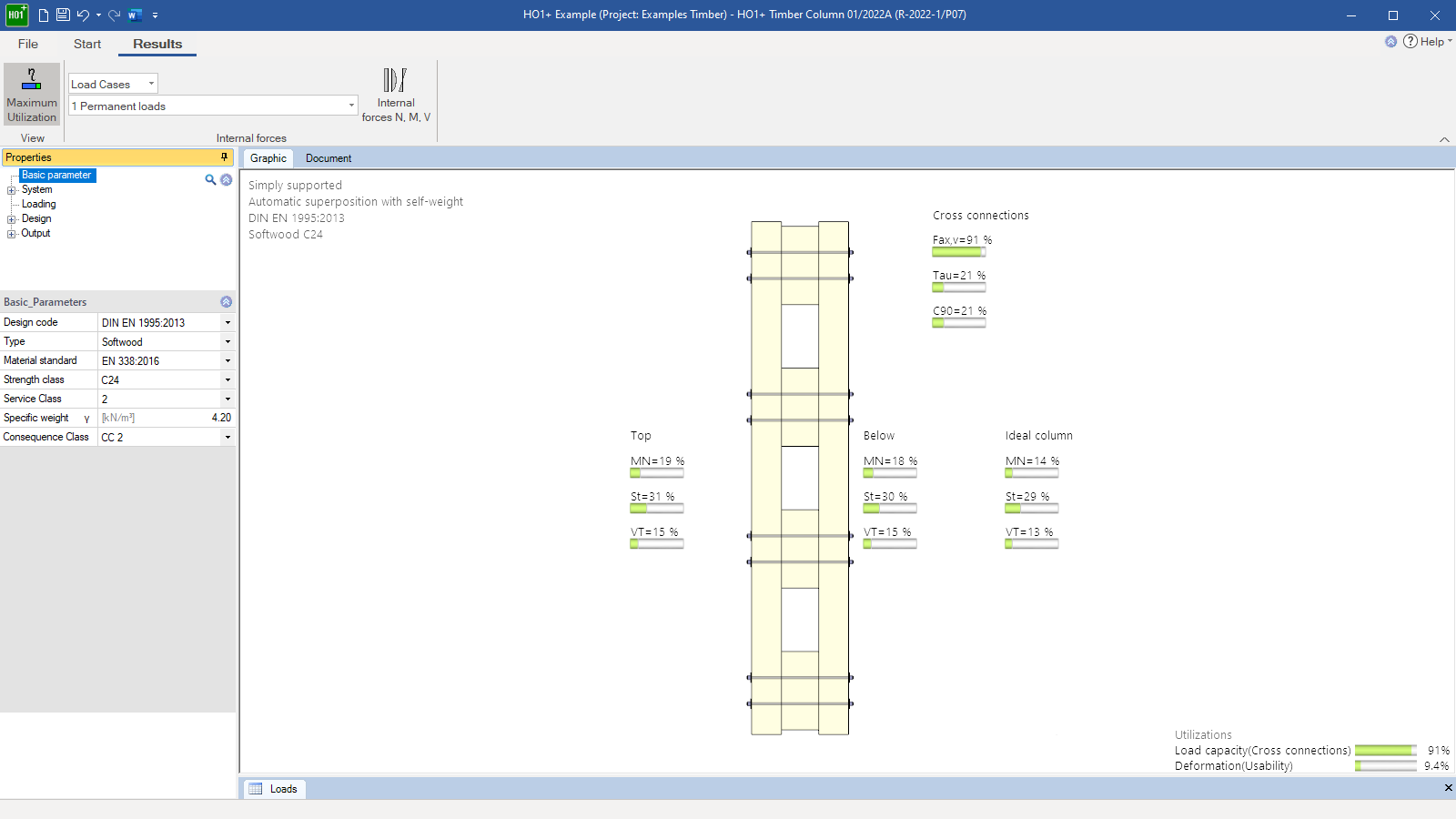

View of the results and the maximum utilization -

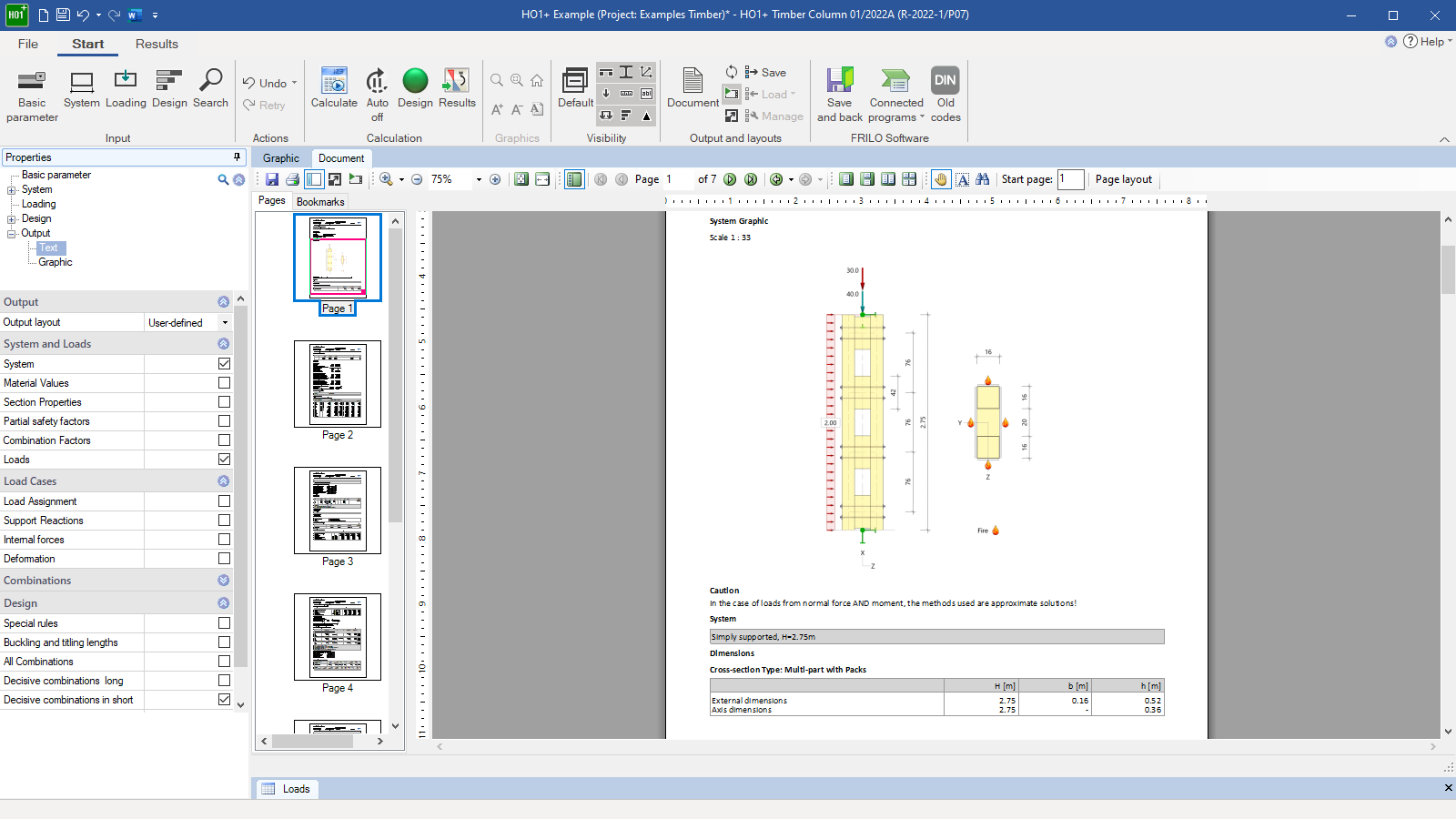

Output document with graphic
Timber Column
HO1+
The HO1+ program is used to design timber columns. Available types are single-part (circular, rectangular) and multi-part cross-sections that are resiliently connected to each other. All partial cross-sections and distances have the same cross-section and modulus of elasticity.
Discover now more programs from the section Timber & Roof!
SHOW MOREMaterial
- Softwood of the strength classes C14 to C50
- Hardwood of the strength classes D18 to D80
- Glulam of the strength classes GL20c/h to GL32c/h
- Laminated veneer lumber STEICO LVL R, LVL Rs,
Structural system
- Cantilever column
- Hinged columns without cantilever
- Hinged columns with cantilever
Loads
- Vertical loads: concentrated loads with eccentricities in the direction of both main axes
- Horizontal loads:
– distributed loads
– block loads
– trapezoidal loads
– concentrated loads
– all loads can be defined in the direction of the main axes and with eccentricities - Hot design
Fasteners
- Round nails
- Bolts
- Glue
- Dowel pins
- Fit bolts
- Special dowels
Design
The internal forces are calculated in a first-order analysis. The design is performed in accordance with EN 1995 section 6. The stability verifications are based on the equivalent member method.
For the calculation of composite cross-sections with yielding connections, the cross-sectional properties are calculated for an ideal individual member. After this, the internal forces and deformations (with and without creep) are determined on the ideal individual member. In addition, the internal forces are determined in the different cross-sections.
The verifications are performed on the ideal individual member and on the final cross-sections. Verifications of the connecting components between the individual cross-section parts (wood spacers, diagonal struts, fasteners) are performed in the connection.
Document file formats
- Word
- Printer
Output
A user-defined scope is selectable.
Transfer options
- Single-span Steel Column STS+
- Timber design HO11+
- Timber Compression, Steel Plate TB-HHS
- Isolated Foundation FD+
- Block Foundation FDB+
Timber construction
- DIN EN 1995
- DIN 1052
- ÖNORM EN 1995
- NTC EN 1995
- BS EN 1995
- PN EN 1995
- EN 1995
