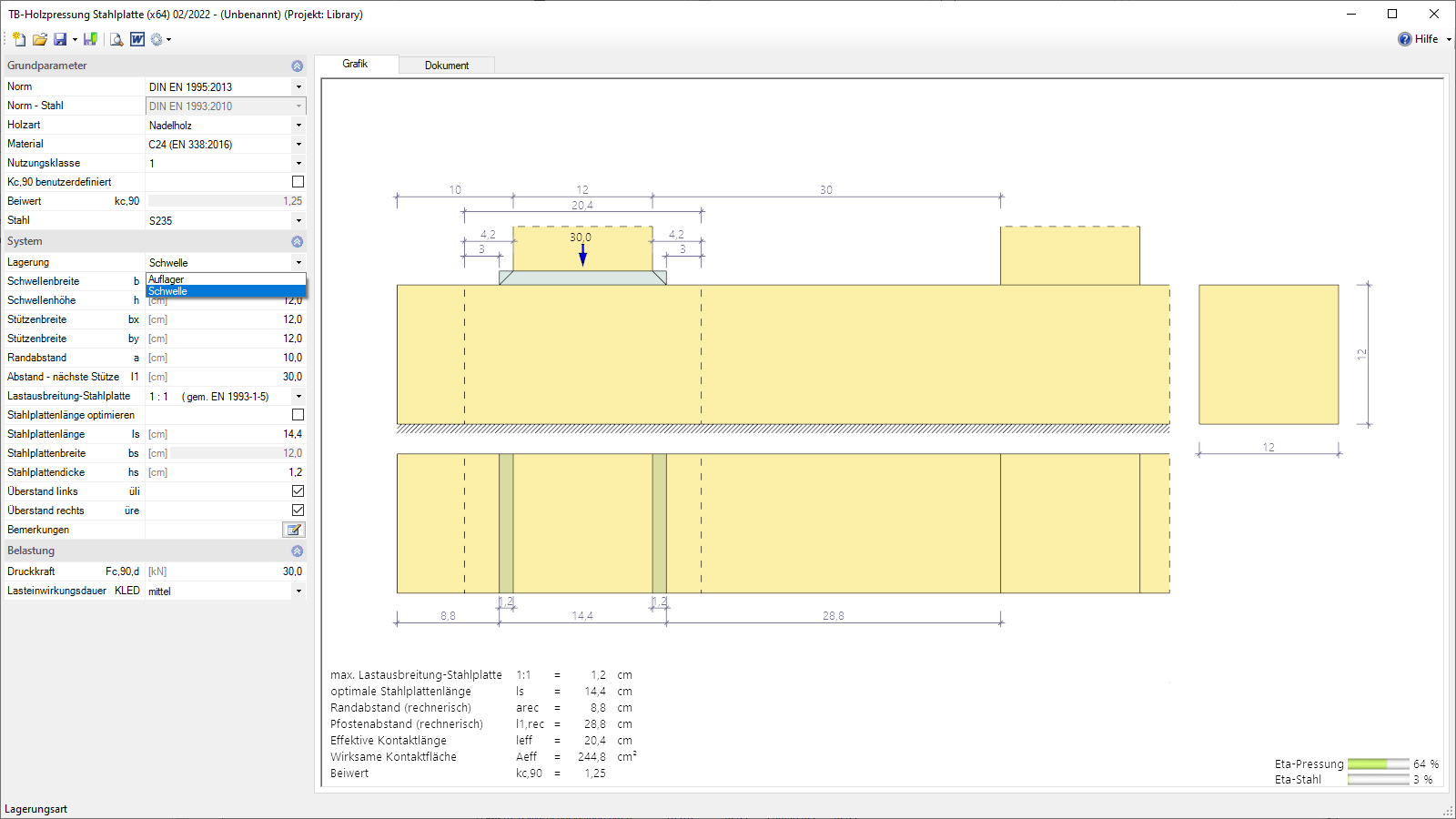

Die Programmoberfläche

Holzpressung unter Stahlplatte

TB-HHS

Das Modul TB-HHS kann den Nachweis einer Holzpressung unter Zuhilfenahme eines Stahlblechs zur Lastverteilung senkrecht zur Faser (z.B. Auflagerpressung) abhängig von den Laststellungen, der Geometrie und dem Material führen.

Bemessung Ausgabemöglichkeiten Normen

Jetzt mehr Programme aus dem Bereich Toolboxen entdecken!

Einzelberechnungen

Berechnung von k_c90
Berechnung von k_mod und Querdruckfestigkeit f_c,90,d
Berechnung der resultierenden Auflagerfläche A_eff
Spannungsnachweis für die Querpressung s_d
Spannungsnachweis für das Stahlblech

Dateiformate

PDF
Word
Drucker

Ausgabe

Standardausgabe

Holz

DIN EN 1995
ÖNORM EN 1995

Stahl

DIN EN 1993
ÖNORM EN 1993

Hilfsmittel

Handbuch

Handbuch
