Toolbox HKK Kehlbalkenanschluss einteilig mit Knagge

Kehlbalkenanschluss mit Knagge

TB-HKK

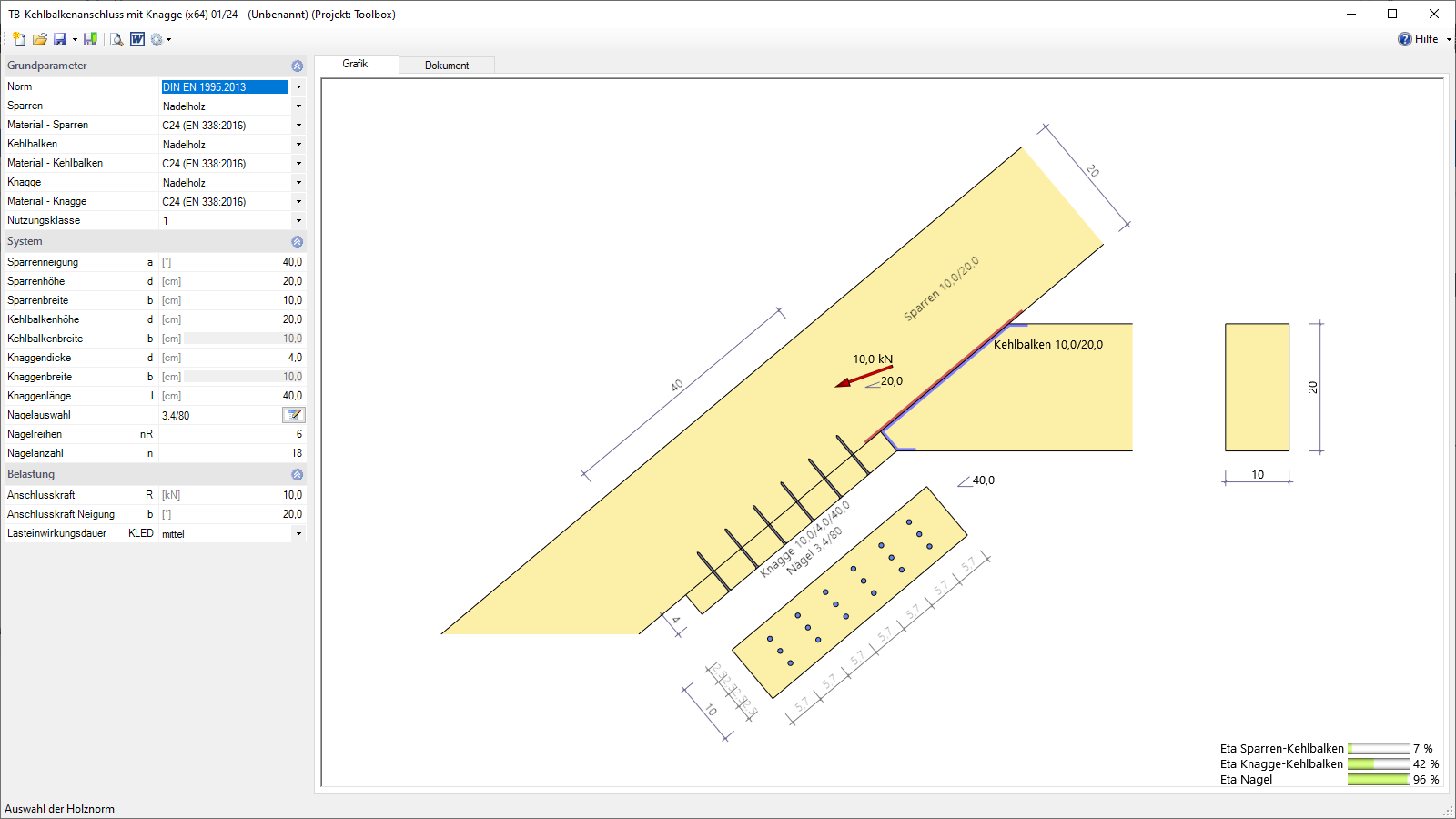

Mit dem Modul TB-HKK kann der Nachweis für einen einteiligen Kehlbalkenanschluss mit Knagge nach EN 1995 geführt werden. Die Bauteile können aus unterschiedlichen Holzmaterialien bestehen. Die Kraftübertragung erfolgt über Kontaktpressung in den Druckflächen zwischen Kehlbalken und Sparren bzw. Kehlbalken und Knagge. Die resultierende Anschlusskraft wird dabei in beide Komponenten orthogonal zu den Druckflächen zerlegt. Es erfolgen die Drucknachweise beider Kontaktbauteile.

Bemessung Ausgabemöglichkeiten Normen

Jetzt mehr Programme aus dem Bereich Toolboxen entdecken!

Einzelberechnungen

Nachweis in der Druckfläche Sparren-Kehlbalken
Nachweis in der Druckfläche Kehlbalken-Knagge

Erforderliche Nagelanzahl:
Das Programm errechnet die statisch erforderliche Anzahl Nägel für einen vorgegebenen Nageldurchmesser. Die geometrische Anordnung und eventuelle Abminderungen werden NICHT berücksichtigt!

Dateiformate

PDF
Word
Drucker

Ausgabe

Standardausgabe

Normen

DIN EN 1995
ÖNORM EN 1995

Hilfsmittel

Handbuch

Handbuch
