Toolbox HKD Kehlbalkenanschluss zweiteilig mit Dübel besonderer Bauart

Kehlbalkenanschluss mit Dübel besonderer Bauart

TB-HKD

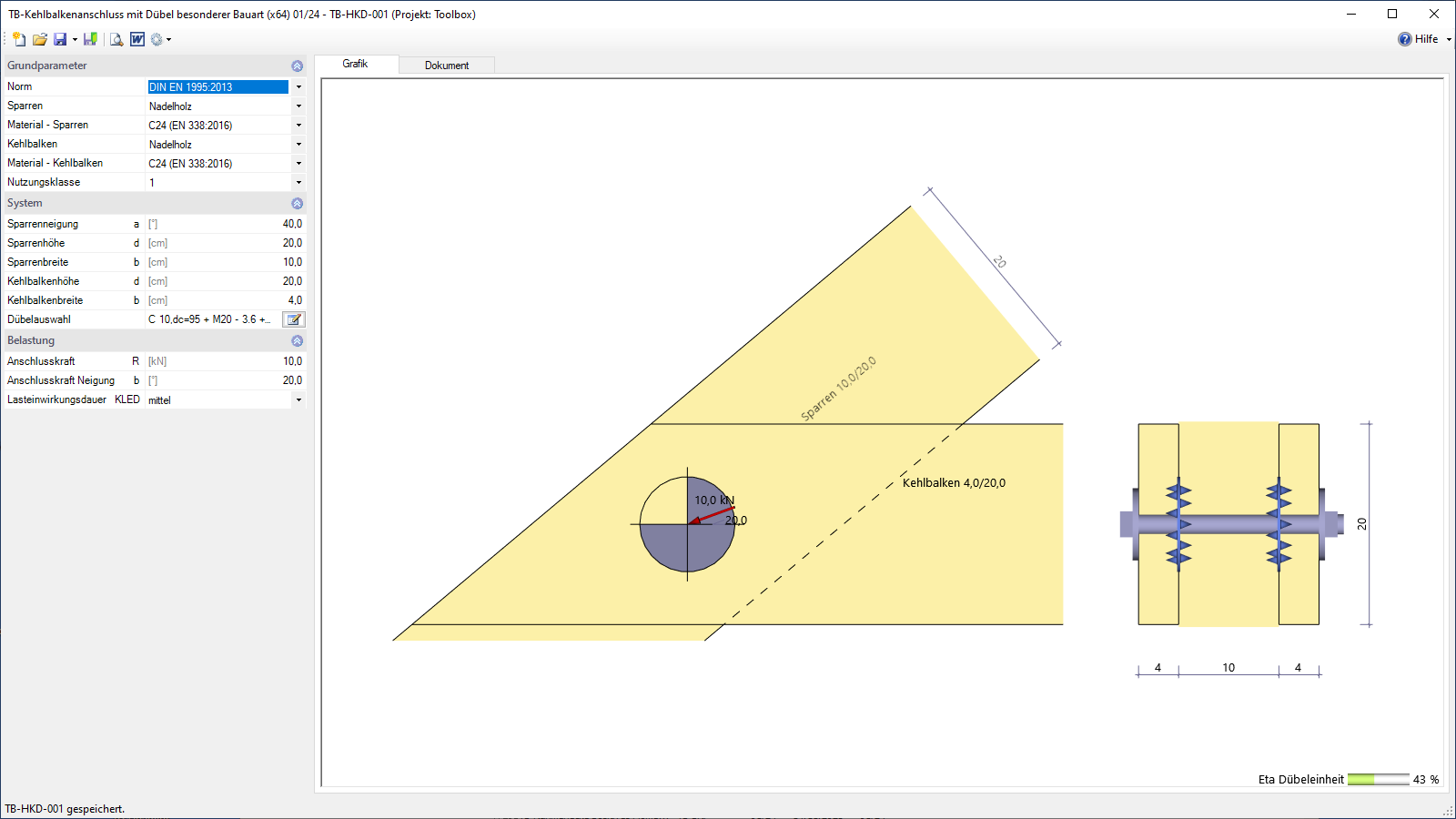

Mit dem Modul TB-HKD kann der Nachweis für einen zweiteiligen Kehlbalkenanschluss mit Dübeln besonderer Bauart nach EN 1995 geführt werden. Die Bauteile können aus unterschiedlichen Holzmaterialen bestehen.

Bemessung Ausgabemöglichkeiten Normen

Jetzt mehr Programme aus dem Bereich Toolboxen entdecken!

Einzelberechnungen

Das Programm errechnet die statisch erforderliche Anzahl Dübel für einen vorgegebenen Dübeltyp und Durchmesser. Die geometrische Anordnung und eventuelle Abminderungen werden NICHT berücksichtigt!

Dateiformate

PDF
Word
Drucker

Ausgabe

Standardausgabe

Normen

DIN EN 1995
ÖNORM EN 1995

Hilfsmittel

Handbuch

Handbuch
