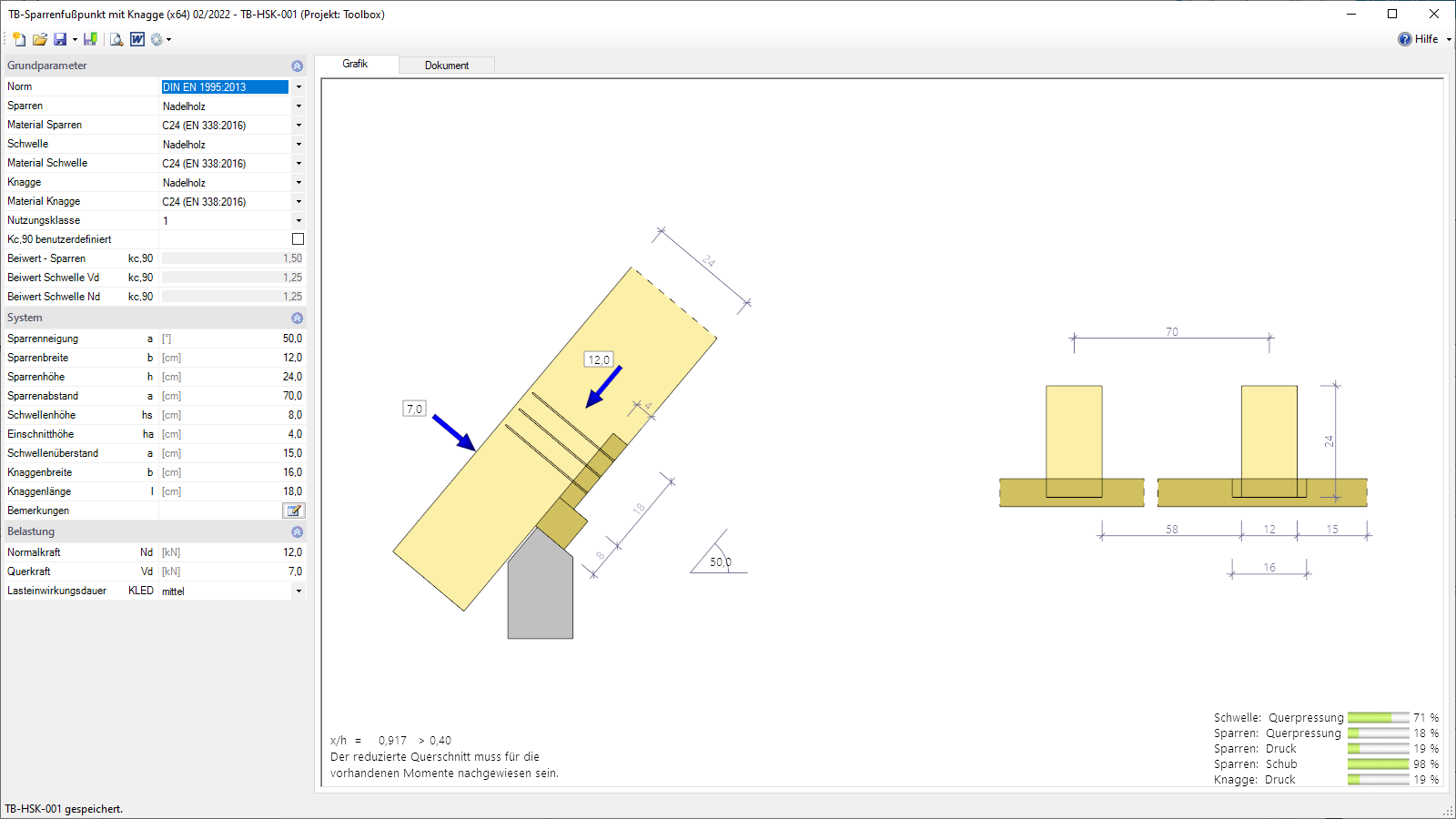

Die Programmoberfläche

Sparrenfußpunkt mit Knagge

TB-HSK

Mit dem Modul TB-HSK lassen sich Sparrenfußpunkte mit Knagge mit Quer- und Normalkräften (z.B. von Sparren- oder Kehlbalkendächern) nachweisen.

Bemessung Ausgabemöglichkeiten Normen

Jetzt mehr Programme aus dem Bereich Toolboxen entdecken!

Einzelberechnungen

Nachweis der Ausklinkung auf Querkraft, ggf. mit Ausgabe der erforderlichen Verstärkungskraft
Pressung senkrecht zur Faser in allen betroffenen Fugen
Pressung parallel zur Faser in allen betroffenen Fugen

Hinweis: Abhebende Kräfte, Windsogverankerungen und Befestigungen im Beton werden nicht behandelt.

Dateiformate

PDF
Word
Drucker

Ausgabe

Standardausgabe

Normen

DIN EN 1995
ÖNORM EN 1995

Hilfsmittel

Handbuch
